Electric Powder Coating Curing Oven

Inquiry

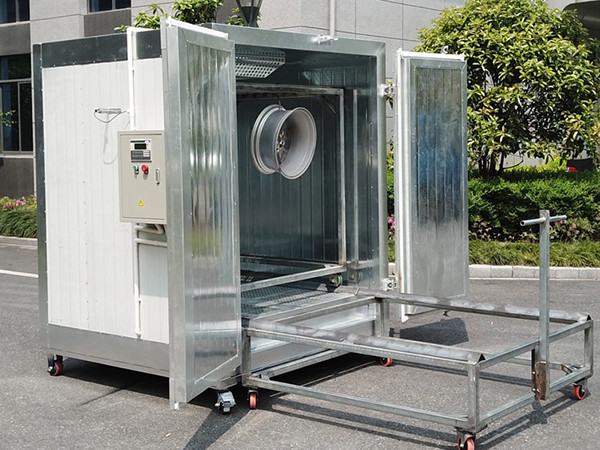

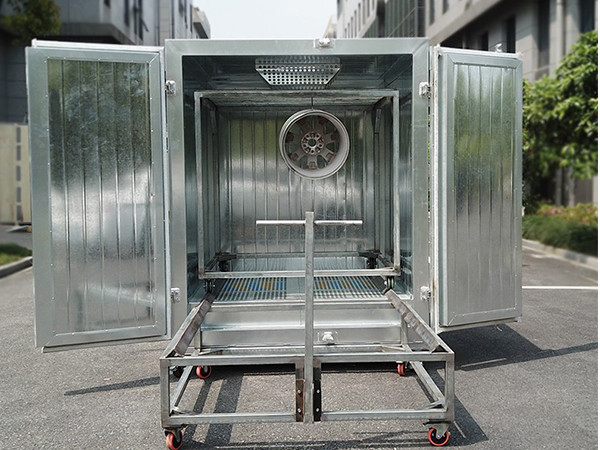

Electric Powder Coating Curing Oven

• COLO-1864 electric powder coating oven is a hot-selling model with excellent performance and high efficiency.
• Heating by electricity provides high-quality and long-lasting powder finish in shorter curing time.
• With operating dimensions of 1.6x1.8x1.4m, it suits for batch production of small and medium sized parts, including alloy wheels, bike and motorcycle parts.
• This curing oven is pre-assembled to deliver, allowing a quick access to powder curing jobs.
• Built with premium components to ensure the reliable quality and maximize the service life.

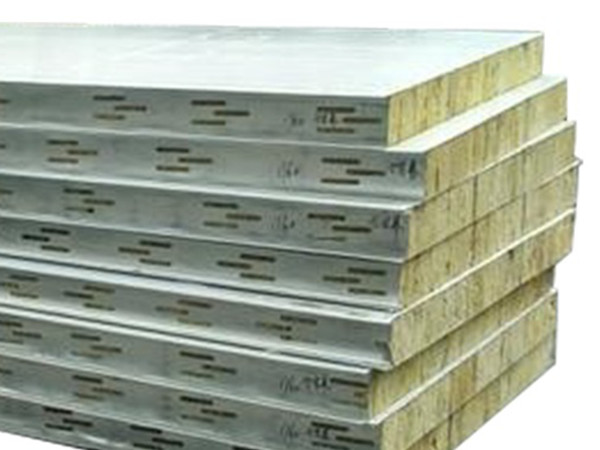

Oven Materials

• Oven wall is designed with sandwich structure for best insulation possible.
• 100mm rock wool board is inserted between galvanized inner wall and color-steel external skins, effectively minimizing temperature dropping.

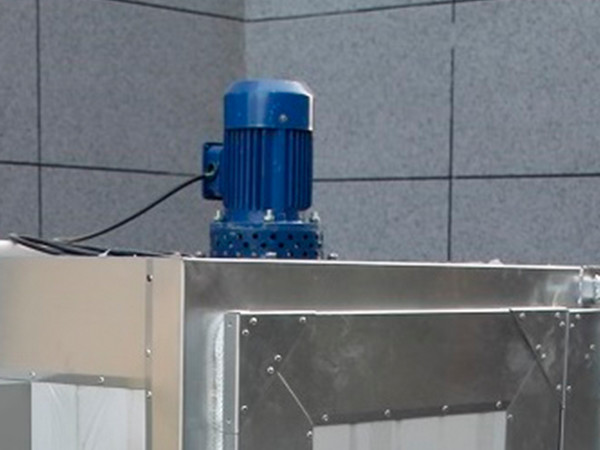

Circulation Fan

Engineered with a circulation fan to cycle hot air through the entire chamber and provides consistent and even powder coating finish.

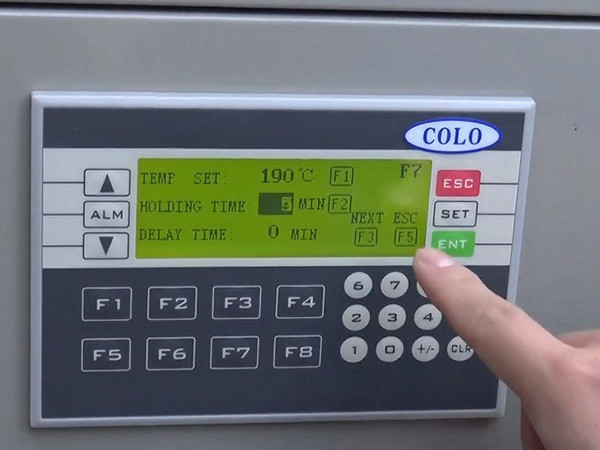

PLC Controller

A simple-operation PLC controller achieves high-precision heating process. Operator could accurately set the desired temperature, heating time and other parameters.

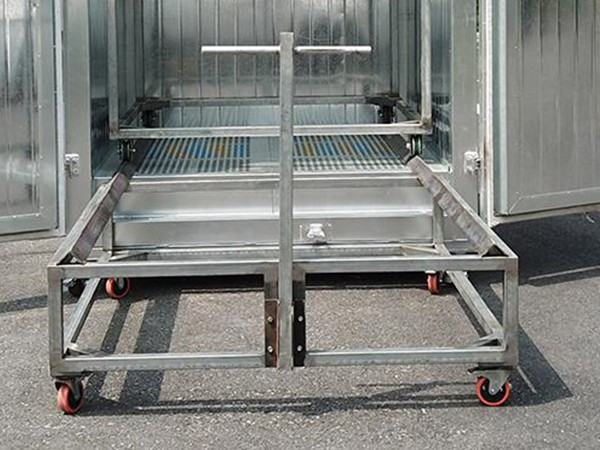

Transport System

• Supply with two trolleys for easy carrying and loading.
• Outer trolley carries inner trolley and objects for outside transportation.
• Inner trolley carries objects and does not contaminate the oven chamber, ensuring high purity of powder coated elements.
