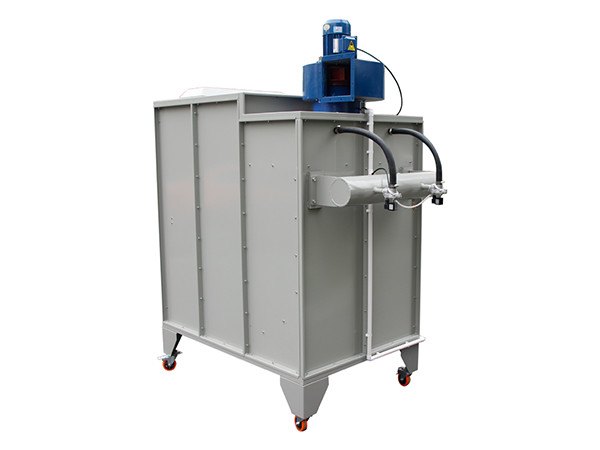

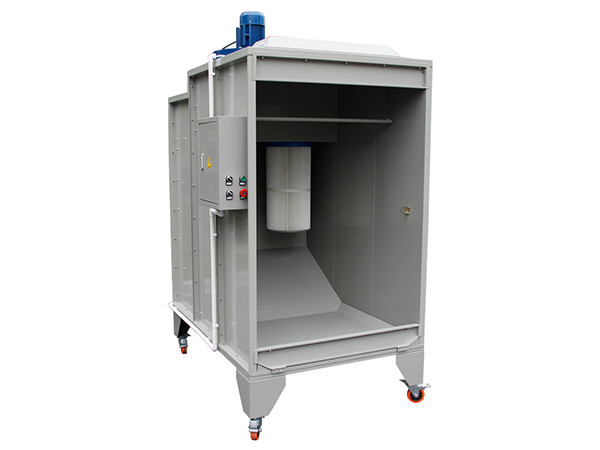

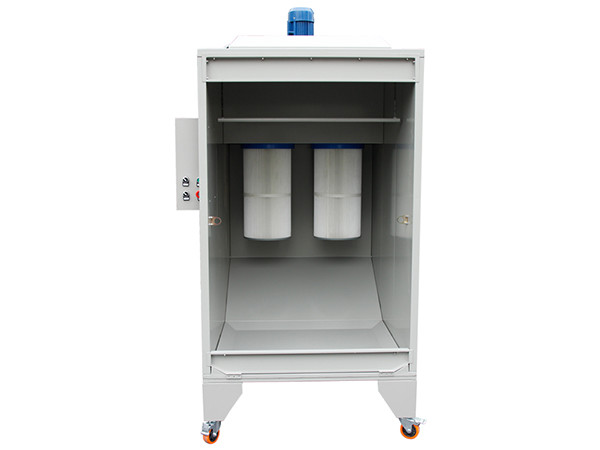

Cartridge Filter Powder Coating Booth

COLO-S-1115
Cartridge Filter Powder Coating Booth
Cartridge Filter Powder Coating Booth
Cartridge Filter Powder Coating Booth
Cartridge Filter Powder Coating Booth
Inquiry
Cartridge Filter Powder Coating Booth
Features
  • COLO-S-1115 powder spray booth is an economic and perfect solution in powder coating operation.
  • Compact structure features more flexible and practical when powder coating space is limited.
  • High efficiency recovery system enhances powder recovery up to 98%, saving costs.
  • Reliable powder containment provides safe and clean powder coating environment.
  • Ideal for coating wheels and other automotive parts or testing for new powder quality or color.
  • Delivers fully pre-assembled powder coating booth, just connect power and air to start working.
Specifications
Model COLO-S-1115
Operating dimensions 1000 width x 1000 depth x 1500 height mm
Overall dimensions 1200 width x 1500 depth x 2000 height mm
Weight 400 kg
Power supply Electric
Nominal power 1.5 kW
Voltage 380V/220V
Frequency 50-60Hz
Filters Polyester
Filter quantity 2pcs (D325*H900 mm)
Hang type filter Easy for change
Filter cleaning system Pneumatic
Air consumption 6600 m3/h

Our booths can be manufactured in any size or specification, allowing you to customize the booth according to your needs. Most importantly, our spray booths are designed with safety in mind.
Details

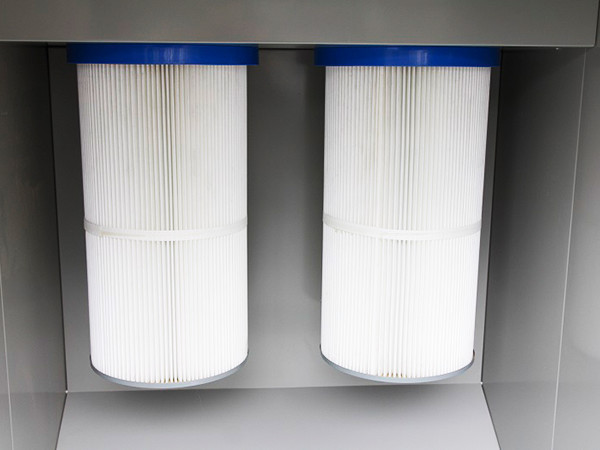

Cartridge Filters

Cartridge Filters
  • Quick-release type cartridge filters can be manually removed and replaced without special tools.
  • Convenient for recycling powder in single-color powder coating operations and simple color change.
  • Combines 2pcs high precision cartridge filters, made of polyester with exact porosity allows to 100% separate powders from airflow.

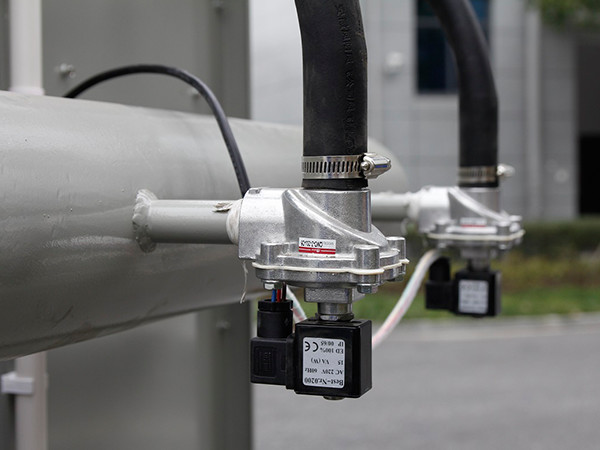

Filter Cleaning System

Filter Cleaning System
  • Pulse-jetting filter cleaning for maintaining peak performance of filters and prolonging service life.
  • The self-cleaning enables accumulated powders on the filter to be intermittently discharged into a recovery hopper beneath the filter stage.

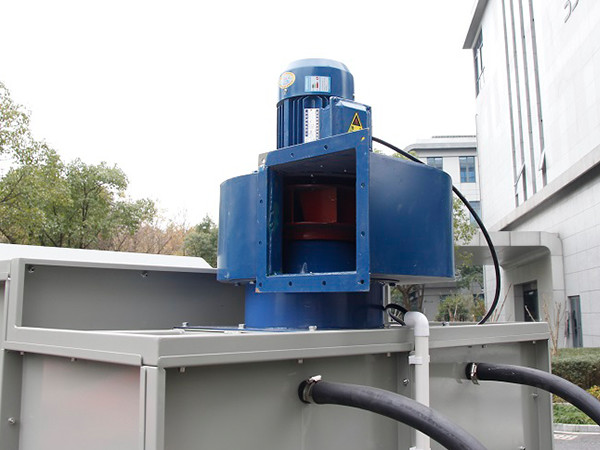

Fan

Fan
  • The air in the workshop is drawn into the spray booth through the powerful fan, which drags the powder paint from the overspray towards filters for completely capture.
  • Our aluminium fan is safe, durable and low noise.

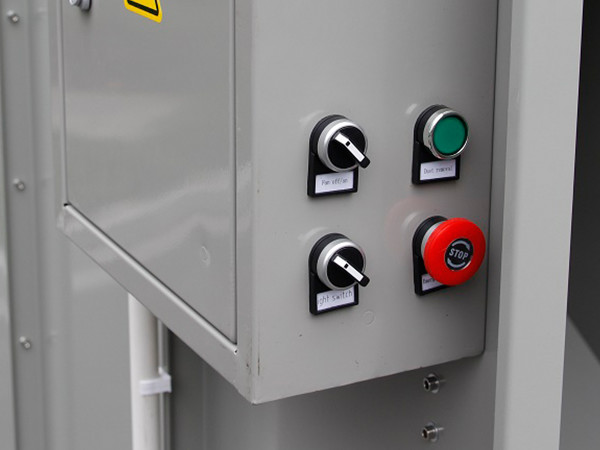

Controller

Controller
  • Safe and simple operation via the user-friendly control panel.
  • Includes power switch, fan start/stop switch, pulse cleaning timer, lighting switch and emergency stop button.

Related Names
Cartridge Filter Booth Manufacturer | Powder Coating Booth with Cartridge Filter | Powder Coating Filter Booth | Powder Coating Spray Booth
