Manual Powder Coating System

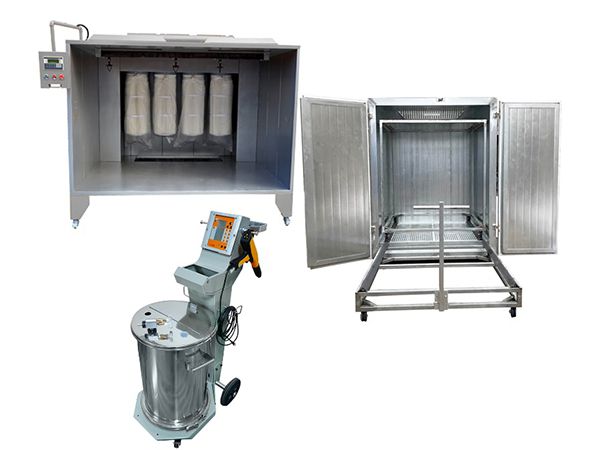

This powder coating system is ideal for small batch coating production, which provides long-lasting and durable finishing film for alloy wheels, automotive accessories, etc. It consists of COLO-191S powder coating gun, COLO-S-2315 powder spray booth and COLO-1864 powder curing oven.

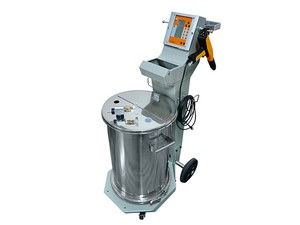

Powder Coating Machine COLO-191S
- Suitable for powder coating any shapes of objects thanks to the powerful technologies.
- Delivers smooth powder flow that creates uniform coating coverage even on the objects’ surfaces with depressions.
- Intelligent controller with DVC (digital valve control) technology provides precise and repeatable powder output settings and other parameters, such as voltage, amperage and airflow.
- 100kv powder spray gun maximizes the electrostatic charging, offering the highest transfer efficiency, and improving powder utilization.

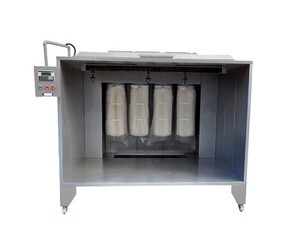

Powder Spray Booth COLO-S-2315
- Made of durable powder coated steel, the powder spray booth requires less maintenance and saves operating cost.
- High performance filter recovery system (combines 4 pcs cartridge filters) achieves efficient use of powder up to 98%.
- Pulse-jetting filter cleaning system could prevent powder accumulation and extend service life of the filters.
- Multifunctional PLC controller allows for setting or adjusting parameters in a convenient and precise manner.
Technical Specifications
| Model | COLO-S-2315 |
| Operating dimensions | W 2300 x D 1500 x H 1500 mm |
| Overall dimensions | W 2750 x D 2070 x H 2180mm |
| Weight | 580 kg |
| Power supply | Electric |
| Nominal power | 4 kw |
| Voltage | 380V/220V |
| Frequency | 50-60Hz |
| Filters | Polyester |
| Filters no. | 4pcs (D325*H900 mm) |
| Hang type filters | Easy for change |
| Filter cleaning system | Pneumatic |
| Air consumption | 6600 m3/h |

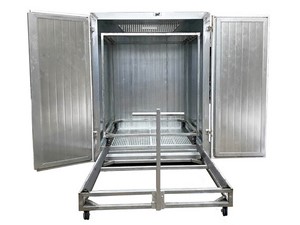

Powder Curing Oven COLO-1864
- Electric heating provides high-quality and long-lasting powder finish in shorter curing time.
- Oven wall is 100mm rock wool board with galvanized inner wall and color-steel external skins for high-performance insulation.
- Circulation fan cycles hot air through the entire chamber, providing consistent and even powder coating finish.
- Simple-operation PLC controller achieves safe and high-precision heating process.
Technical Specifications
| Model | COLO-1864 |
| Operating dimensions | W 1600 x H 1800 x D 1400 mm |
| Overall dimensions | W 1900 x H 2200 x D 1700 mm |
| Power supply | Electric, 18kW |
| Voltage | 220V/380V |
| Frequency | 50-60 Hz |
| Warm-up time | 15-30min (180°C) |
| Temperature stability | < ± 3-5°C |
| Max. temperature | 250°C |
| Ventilation performance | 805-1677m 3/h |
| Motor power | 0.75kW |
